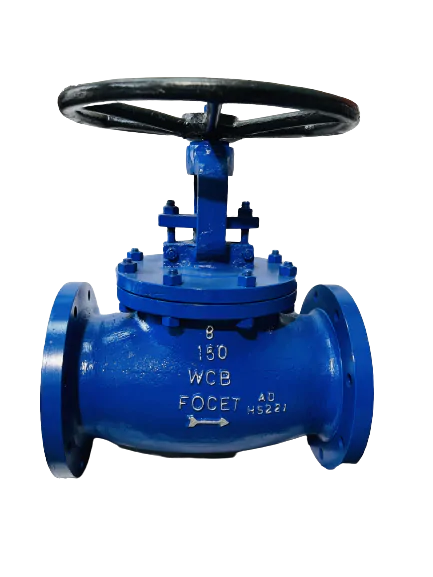

Globe Valves
Industrial Globe Valves Manufacturer
Focet Valves Pvt. Ltd. is the Best Industrial Globe Valves Manufacturer, Industrial Globe Valves Exporter in Gujarat, and Industrial Globe Valves Wholesaler in Ahmedabad. We give you Best Industrial Globe Valves Prices in Ahmedabad.
|
Technical Specification
|
|
|---|---|
|
BODY & BONNET
|
ASTM A216 GR WCB / ASTM A351 GR CF8(304)/CF8M(316)
|
|
TRIMS
|
13 CR./ 18Cr 8 Ni
|
|
MFG STD
|
BS 1873
|
|
INSP & TEST STD
|
BS 6755
|
|
END
|
FLANGED TO ASME B16.5 RF 150#/300#/600#
|
|
OPEARATION
|
HAND WHEEL/GEAR OPERATED
|
|
HYD TEST PRESSURE
|
FOR 150#
|
|
BODY
|
425 PSIG (30KG/CM2)
|
|
SEAT
|
300 PSIG (21KG/CM2)
|
|
SIZE RANGE
|
25 MM TO 400 MM
|

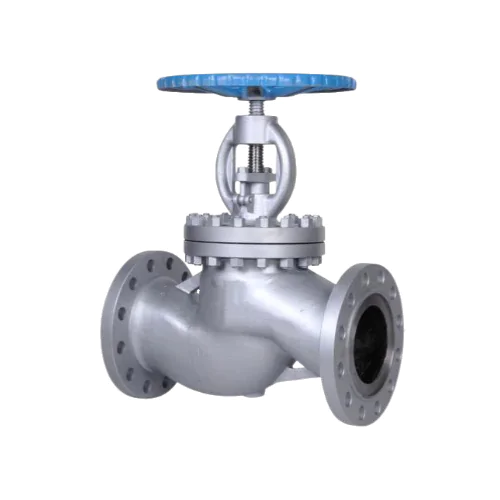

GLOBE VALVE ND 40 (DIN STD)
|
Technical Specification
|
|
|---|---|
|
BODY & BONNET
|
ASTM A216 GR WCB / ASTM A351 GR CF8(304)/CF8M(316)
|
|
TRIMS
|
13 CR./ 18Cr 8 Ni
|
|
MFG STD
|
BS 1873
|
|
INSP & TEST STD
|
BS 6755
|
|
END
|
FLANGED TO ASME B16.5 RF
|
|
OPEARATION
|
HAND WHEEL/GEAR OPERATED
|
|
HYD TEST PRESSURE
|
FOR 150#
|
|
BODY
|
425 PSIG (30KG/CM2)
|
|
SEAT
|
300 PSIG (21KG/CM2)
|
|
SIZE RANGE
|
25 MM TO 200 MM
|
|
Sailent Features
|
|---|
|
Rigid and Sturdy design with minimum loss of ahead across the valve.
|
|
Perfect Interchangeability of components.
|
|
Assured Parallelism of components.
|
|
Assured equal taper on both sides of the wedges.
|
|
Perfect Machining and pressing of body and wedge face ring.
|
|
Long service life and leak Tightness even after thousand of open/closed cycles.
|
|
Excellent finish on spindle threads resulting in low friction and smoother operation of valves.
|
