Industrial Strainer Manufacturer
Y Type Strainer Manufacturer
Focet Valves Pvt. Ltd. is the Best Industrial Strainer Valves Manufacturer, Industrial Strainer Valves Exporter in Gujarat, and Industrial Strainer Valves Wholesaler in Ahmedabad. We give you Best Industrial Strainer Valves Prices in Ahmedabad.
|
Technical Specification
|
|
|---|---|
|
BODY & COVER
|
ASTM A 216 GR WCB / ASTM A351 GR CF8(304) / CF8M(316) / CAST IRON
|
|
SCREEN
|
SS 304/ SS 316
|
|
MFG STD
|
BS 1414
|
|
INSP & TEST STD
|
AS PER STD
|
|
ENDS
|
FLANGED END TO ASME B 16.5 RF 150# / 300# / 600#
|
|
HYD TEST PRESSURE
|
BODY : 425 PSIG (30 KG/CM2)
|
|
SIZE RANGE
|
25 MM TO 400 MM
|
T Type Strainer Manufacturer
|
Technical Specification
|
|
|---|---|
|
BODY & COVER
|
ASTM A351 GR CF8(304) / CF8M(316)
|
|
SCREEN
|
SS 304/ SS 316
|
|
MFG STD
|
BS 1414
|
|
INSP & TEST STD
|
AS PER STD
|
|
ENDS
|
FLANGED END TO ASME B 16.5 RF 150#
|
|
HYD TEST PRESSURE
|
BODY : 425 PSIG (30 KG/CM2)
|
|
SIZE RANGE
|
25 MM TO 200 MM
|

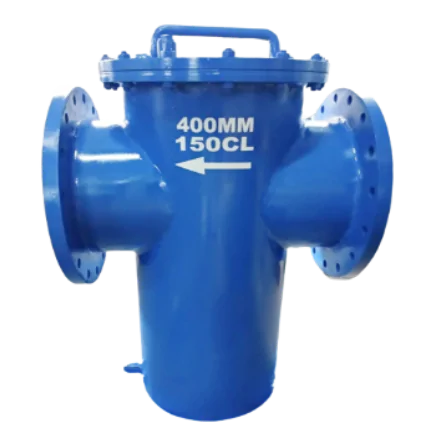

Fabricated Basket Type Strainer Manufacturer
|
Technical Specification
|
|
|---|---|
|
BODY
|
MS (IS 2062)
|
|
COVER
|
CARBON STEEL IS 2062
|
|
SCREEN
|
SS 304 / SS 316
|
|
MFG STD
|
AS PER MANUFACTURER STD
|
|
INSP & TEST STD
|
BS 6755 PART-1
|
|
ENDS
|
FLANGED END TO ASME B16.5 RF 150#
|
|
HYD TEST PRESSURE
|
BODY : 210 PSIG (15 KG/CM2)
|
|
SIZE RANGE
|
25 MM TO 1000 MM
|

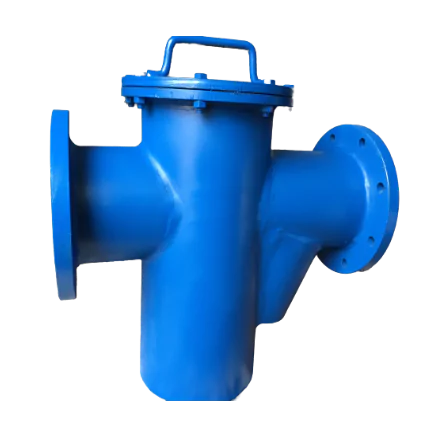

Fabricated Pot Type Strainer Manufacturer
|
Technical Specification
|
|
|---|---|
|
BODY
|
MS (IS 2062)
|
|
COVER
|
CARBON STEEL IS 2062
|
|
SCREEN
|
SS 304 / SS 316
|
|
MFG STD
|
AS PER MANUFACTURER STD
|
|
INSP & TEST STD
|
BS 6755 PART-1
|
|
ENDS
|
FLANGED END TO ASME B16.5 RF 150#
|
|
HYD TEST PRESSURE
|
BODY : 210 PSIG (15 KG/CM2)
|
|
SIZE RANGE
|
25 MM TO 1000 MM
|

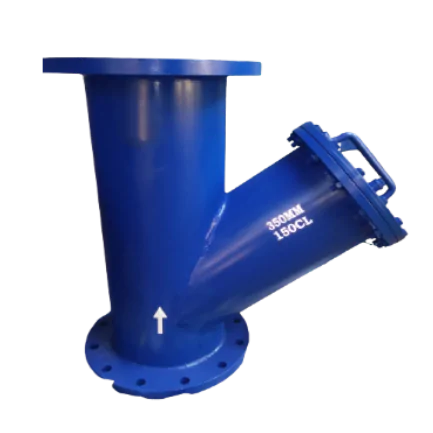

Fabricated Y Type Strainer Manufacturer
|
Technical Specification
|
|
|---|---|
|
BODY
|
MS (IS 2062)
|
|
COVER
|
CARBON STEEL IS 2062
|
|
SCREEN
|
SS 304 / SS 316
|
|
MFG STD
|
AS PER MANUFACTURER STD
|
|
INSP & TEST STD
|
BS 6755 PART-1
|
|
ENDS
|
FLANGED END TO ASME B16.5 RF 150#
|
|
HYD TEST PRESSURE
|
BODY : 210 PSIG (15 KG/CM2)
|
|
SIZE RANGE
|
25 MM TO 1000 MM
|
Fabricated Duplex Type Strainer Manufacturer
|
Technical Specification
|
|
|---|---|
|
BODY
|
MS (IS 2062)
|
|
COVER
|
CARBON STEEL IS 2062
|
|
SCREEN
|
SS 304 / SS 316
|
|
MFG STD
|
AS PER MANUFACTURER STD
|
|
INSP & TEST STD
|
BS 6755 PART-1
|
|
ENDS
|
FLANGED END TO ASME B16.5 RF 150#
|
|
HYD TEST PRESSURE
|
BODY : 210 PSIG (15 KG/CM2)
|
|
SIZE RANGE
|
25 MM TO 600 MM
|
"Y" TYPE STRAINER SCREWED END Manufacturer
|
Technical Specification
|
|
|---|---|
|
BODY
|
WCB / CF8(304) / CF8M(316) / CAST IRON
|
|
SCREEN
|
SS 304 / SS 316
|
|
MFG STD
|
AS PER MANUFACTURER
|
|
END
|
SCREWED END TO BSP
|
|
HYD TEST PRESSURE
|
BODY : 425 PSIG (30 KG/CM2)
|
|
SIZE RANGE
|
15 MM TO 100 MM
|
|
Sailent Features
|
|---|
|
Rigid and Sturdy design with minimum loss of ahead across the valve.
|
|
Perfect Interchangeability of components.
|
|
Assured Parallelism of components.
|
|
Assured equal taper on both sides of the wedges.
|
|
Perfect Machining and pressing of body and wedge face ring.
|
|
Long service life and leak Tightness even after thousand of open/closed cycles.
|
|
Excellent finish on spindle threads resulting in low friction and smoother operation of valves.
|
